Importing PyHiM chromatin-trace tables (ECSV)¶
PyHiM (Devos et al. 2024, Genome Biology) analyses
multiplexed DNA-FISH (Hi-M) images and writes its chromatin traces as an Astropy ECSV
table (Spot_ID, Trace_ID, x, y, z, Chrom, Chrom_Start, Chrom_End, ROI #, Mask_id, Barcode #, label). In this tutorial you read such a table with
ChromData.from_pyhim_trace (package chromdata; needs astropy), check it against the
original data, handle a table whose genomic columns are empty (barcode_dict=), and take a
first look at the traces with uchrom.fea / uchrom.pl.
Data: Bintu et al. 2018, Science 362:eaau1783 — IMR90 chromatin tracing of
chr21:18.6–20.6 Mb (hg38), 1,277 traced chromosomes × 65 segments of 30 kb. The authors
publish a plain CSV (IMR90_chr21-18-20Mb.csv; ds.fetch("bintu_imr90") downloads it once from
their GitHub, 2 MB); section 1 writes it in PyHiM’s ECSV schema. Runtime: about 20 s.
from pathlib import Path
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from chromdata import ChromData
import uchrom.datasets as ds
import uchrom.fea as fea
plt.rcParams["figure.dpi"] = 90
OUT = Path("_out"); OUT.mkdir(exist_ok=True) # outputs: tutorials/_out/ (ignored by git)
BINTU = ds.fetch("bintu_imr90") # Bintu 2018 IMR90 chr21 CSV (authors' GitHub; downloaded once)
print(f"{BINTU.name} ({BINTU.stat().st_size / 1e6:.1f} MB)")
IMR90_chr21-18-20Mb.csv (2.0 MB)
2. What a PyHiM ECSV looks like¶
An ECSV file starts with a YAML header (# lines): the column names and dtypes and a
meta block. PyHiM’s meta['comments'] carries key=value strings such as xyz_unit
and genome_assembly. The data rows follow, space-separated.
with open(ECSV) as fh:
for line in fh.readlines()[:24]:
print(line.rstrip()[:120])
# %ECSV 1.0
# ---
# datatype:
# - {name: Spot_ID, datatype: string}
# - {name: Trace_ID, datatype: string}
# - {name: x, datatype: float64}
# - {name: y, datatype: float64}
# - {name: z, datatype: float64}
# - {name: Chrom, datatype: string}
# - {name: Chrom_Start, datatype: int64}
# - {name: Chrom_End, datatype: int64}
# - {name: 'ROI #', datatype: int64}
# - {name: Mask_id, datatype: int64}
# - {name: 'Barcode #', datatype: int64}
# - {name: label, datatype: string}
# meta: !!omap
# - comments: [xyz_unit=micron, genome_assembly=hg38, 'source=Bintu et al. 2018 Science 362:eaau1783', 'region=chr21:18.
# n_traces=1277, spots_per_trace=65, segment_spacing=30kb, note=undetected segments have NaN coordinates]
# schema: astropy-2.0
Spot_ID Trace_ID x y z Chrom Chrom_Start Chrom_End "ROI #" Mask_id "Barcode #" label
1_1 1 117.803 58.446 1.733 chr21 18627714 18657714 0 1 1 None
1_2 1 117.726 58.747 1.68 chr21 18657714 18687714 0 1 2 None
1_3 1 117.747 58.607 1.872 chr21 18687714 18717714 0 1 3 None
1_4 1 117.724 58.415 1.95 chr21 18717714 18747714 0 1 4 None
3. Read it with from_pyhim_trace¶
The column mapping: x, y, z → coords; Chrom, Chrom_Start, Chrom_End → the locus axis
bins; Trace_ID → trace_id; Mask_id → cell_id (PyHiM’s segmentation mask; in this
conversion every chromosome is its own “cell”); ROI # → roi_id, Barcode # → barcode,
Spot_ID → spot_id, label stays. The ECSV comments are kept in uns['pyhim'], and
xyz_unit / genome_assembly are promoted to uns.
cd = ChromData.from_pyhim_trace(ECSV)
print(cd)
print()
print("uns['xyz_unit'] =", cd.uns["xyz_unit"], "| uns['genome_assembly'] =", cd.uns["genome_assembly"])
print("ECSV comments:", cd.uns["pyhim"]["ecsv_comments"][:5], "...")
missing = np.isnan(cd.coords[:, 0])
print(f"\n{cd.n_traces:,} traces x {cd.n_bins} loci = {cd.n_spots:,} spots; "
f"{missing.mean():.1%} of the spots have no coordinates (segment not detected: NaN rows)")
cd.spots.head()
ChromData: n_spots=83005, n_traces=1277, n_cells=1277, n_bins=65
spots: ['chrom', 'start', 'end', 'trace_id', 'spot_id', 'cell_id', 'roi_id', 'barcode', 'label', 'bin_id']
uns: ['pyhim', 'xyz_unit', 'genome_assembly']
uns['xyz_unit'] = micron | uns['genome_assembly'] = hg38
ECSV comments: ['xyz_unit=micron', 'genome_assembly=hg38', 'source=Bintu et al. 2018 Science 362:eaau1783', 'region=chr21:18.6-20.6 Mb', 'cell_type=IMR90'] ...
1,277 traces x 65 loci = 83,005 spots; 6.3% of the spots have no coordinates (segment not detected: NaN rows)
| chrom | start | end | trace_id | spot_id | cell_id | roi_id | barcode | label | bin_id | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0 | chr21 | 18627714 | 18657714 | 1 | 1_1 | 1 | 0 | 1 | None | 0 |
| 1 | chr21 | 18657714 | 18687714 | 1 | 1_2 | 1 | 0 | 2 | None | 1 |
| 2 | chr21 | 18687714 | 18717714 | 1 | 1_3 | 1 | 0 | 3 | None | 2 |
| 3 | chr21 | 18717714 | 18747714 | 1 | 1_4 | 1 | 0 | 4 | None | 3 |
| 4 | chr21 | 18747714 | 18777714 | 1 | 1_5 | 1 | 0 | 5 | None | 4 |
cd.bins.head() # 65 loci of 30 kb from chr21:18,627,714
| chrom | start | end | |
|---|---|---|---|
| bin_id | |||
| 0 | chr21 | 18627714 | 18657714 |
| 1 | chr21 | 18657714 | 18687714 |
| 2 | chr21 | 18687714 | 18717714 |
| 3 | chr21 | 18717714 | 18747714 |
| 4 | chr21 | 18747714 | 18777714 |
4. Check the import against the original CSV¶
uchrom.io.read_bintu_tracing reads the authors’ own CSV (coordinates in nm, undetected
segments dropped). This checks the conversion of section 1 and the ECSV reader together: the
two imports must hold the same spots: same traces, same loci and the
same coordinates (µm × 1000 = nm).
from uchrom.io import read_bintu_tracing
ref = read_bintu_tracing(BINTU, chrom="chr21", start_bp=18_627_714, resolution_bp=30_000)
print(ref, "\n")
key = ["trace_id", "start"]
a = cd.to_dataframe().dropna(subset=["x"]).astype({"trace_id": str})[key + ["x", "y", "z"]]
b = ref.to_dataframe().astype({"trace_id": str})[key + ["x", "y", "z"]]
m = a.merge(b, on=key, suffixes=("_ecsv", "_csv"), validate="one_to_one")
err = max(np.abs(m[f"{c}_ecsv"] * 1000 - m[f"{c}_csv"]).max() for c in "xyz")
print(f"spots with coordinates: ECSV {len(a):,}, original CSV {len(b):,}, matched {len(m):,}")
print(f"largest coordinate difference: {err:.2e} nm")
assert len(m) == len(a) == len(b) and err < 1e-6
ChromData: n_spots=77797, n_traces=1277, n_cells=1277, n_bins=65
spots: ['chrom', 'start', 'end', 'trace_id', 'cell_id', 'bin_id']
uns: ['xyz_unit', 'genome_assembly', 'source']
spots with coordinates: ECSV 77,797, original CSV 77,797, matched 77,797
largest coordinate difference: 1.46e-11 nm
5. Tables without genomic coordinates: barcode_dict=¶
PyHiM fills Chrom / Chrom_Start / Chrom_End only when it was given the barcode →
genome mapping; otherwise those columns are empty and only Barcode # identifies the locus.
To show this, write a copy of the real table with the three columns blanked, as such a run
would produce it. Reading it then needs a barcode_dict — {barcode: (chrom, start, end)}
or a DataFrame with columns barcode, chrom, start, end — usually your probe design.
from astropy.table import Table
t = Table.read(ECSV, format="ascii.ecsv")
t["Chrom"] = [""] * len(t)
t["Chrom_Start"] = np.zeros(len(t), dtype=np.int64)
t["Chrom_End"] = np.zeros(len(t), dtype=np.int64)
no_loci = OUT / "IMR90_chr21_pyhim_noloci.ecsv"
t.write(no_loci, format="ascii.ecsv", overwrite=True)
try:
ChromData.from_pyhim_trace(no_loci)
except ValueError as e:
print("without barcode_dict:", e)
without barcode_dict: PyHiM ECSV has no Chrom/Chrom_Start/Chrom_End data; pass `barcode_dict={barcode: (chrom, start, end)}` or a DataFrame[barcode, chrom, start, end].
# the probe panel: barcode b covers chr21:18,627,714 + (b - 1) * 30 kb
panel = pd.DataFrame({"barcode": np.arange(1, 66)})
panel["chrom"] = "chr21"
panel["start"] = 18_627_714 + (panel["barcode"] - 1) * 30_000
panel["end"] = panel["start"] + 30_000
cd2 = ChromData.from_pyhim_trace(no_loci, barcode_dict=panel)
pd.testing.assert_frame_equal(cd.to_dataframe(), cd2.to_dataframe())
print("with barcode_dict: same object as the fully annotated table —", cd2.n_spots, "spots,", cd2.n_bins, "loci")
with barcode_dict: same object as the fully annotated table — 83005 spots, 65 loci

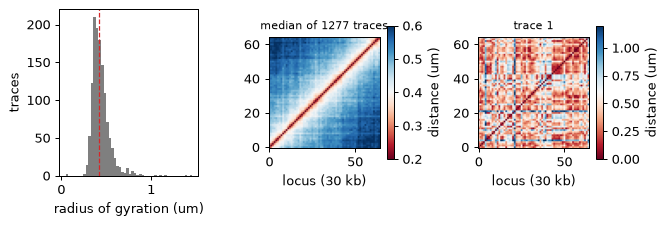

6. A first look at the traces¶
The table is now an ordinary ChromData, so the feature functions apply. Per-trace radius of
gyration (uchrom.fea.radius_of_gyration), the population median distance map
(uchrom.fea.distance_map; missing spots are skipped pair by pair) and one single trace
(cd.compute_distances(trace_id=...)). Bintu et al. saw TAD-like domains in the population
map that are much less regular in single chromosomes.
df = cd.to_dataframe().dropna(subset=["x"]) # skip the undetected segments
rg = fea.radius_of_gyration(df)
print(f"radius of gyration over {rg.notna().sum():,} traces: median {rg.median():.3f} um "
f"(IQR {rg.quantile(0.25):.3f}-{rg.quantile(0.75):.3f})")
dm = fea.distance_map(cd, "chr21", stat="median")
print(f"median distance map: {dm.matrix.shape}, from {dm.n_traces} traces; "
f"adjacent loci {np.nanmedian(np.diag(dm.matrix, 1)):.3f} um, "
f"ends of the region {dm.matrix[0, -1]:.3f} um apart")
radius of gyration over 1,277 traces: median 0.418 um (IQR 0.375-0.476)
median distance map: (65, 65), from 1277 traces; adjacent loci 0.302 um, ends of the region 0.608 um apart
# one fully detected trace (all 65 segments)
n_obs = df.groupby("trace_id", observed=True).size()
tid = n_obs.index[n_obs == cd.n_bins][0]
single = cd.compute_distances(trace_id=tid)
fig, axes = plt.subplots(1, 3, figsize=(7.5, 2.6))
axes[0].hist(rg.dropna(), bins=50, color="tab:gray")
axes[0].axvline(rg.median(), color="tab:red", ls="--", lw=1)
axes[0].set_xlabel("radius of gyration (um)"); axes[0].set_ylabel("traces")
for ax, mat, title, (vmin, vmax) in [(axes[1], dm.matrix, f"median of {dm.n_traces} traces", (0.2, 0.6)),
(axes[2], single, f"trace {tid}", (0, 1.2))]:
im = ax.imshow(mat, cmap="RdBu", vmin=vmin, vmax=vmax, origin="lower")
ax.set_title(title, fontsize=9); ax.set_xlabel("locus (30 kb)")
fig.colorbar(im, ax=ax, shrink=0.8, label="distance (um)")
plt.tight_layout(); plt.show()
7. Save¶
Write the object as a .chromdata.zarr store; it keeps everything (including uns['pyhim'])
and reads back in a fraction of the ECSV parse time.
store = OUT / "imr90_chr21_pyhim.chromdata.zarr"
cd.write(store)
back = ChromData.read(store)
a = cd.to_dataframe().sort_values(["trace_id", "start"]).reset_index(drop=True)
b = back.to_dataframe().sort_values(["trace_id", "start"]).reset_index(drop=True)
pd.testing.assert_frame_equal(a, b, check_categorical=False)
print(f"wrote {store}; read back {back.n_spots:,} spots, uns keys {sorted(back.uns)}")
wrote _out/imr90_chr21_pyhim.chromdata.zarr; read back 83,005 spots, uns keys ['genome_assembly', 'pyhim', 'xyz_unit']
Next steps¶
import_fofct.ipynb— the 4DN FOF-CT format (with cell and RNA tables), and streaming imports.fish_imputation.ipynb— fill the 6 % undetected segments (this same Bintu table is its hold-out benchmark).Structure calling on imaging data:
tad_calling.ipynb,loop_calling.ipynb,fishnet_domains.ipynb;gem_fish_reconstruction.ipynbcombines this Bintu table with IMR90 Hi-C.Interactive view:
python -m uchrom_browser tutorials/_out/imr90_chr21_pyhim.chromdata.zarr.
