Visualisation: plots and the web browser

This tutorial draws the standard population figures of chromatin-tracing data with uchrom.pl (distance matrix, contact map, radius-of-gyration histogram) and then works with the U-Chrom web browser (package uchrom-browser, import uchrom_browser) from Python: it serves a store on a local port, queries the server’s HTTP API, connects the Workspace client and shuts the server down again.

Data: the Takei et al. 2021 mESC DNA seqFISH+ traces with their cell table (per-cell RNA counts) and nascent-RNA spot table (Nature 590:344; 4DN 4DNFIHF3JCBY, 4DNFIFINA2U9, 4DNFIJ52NVDV, FOF-CT; ds.fetch("takei") and ds.fetch("takei_tables") download them once from the 4DN data portal), and — if the network is available — the catalog of the public U-Chrom atlas and one of its stores, read over HTTP. Runtime: under a minute.

import json
import os
import struct
import textwrap
import threading
import time
import urllib.error
import urllib.request
from pathlib import Path

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

from chromdata import ChromData
import uchrom.datasets as ds
import uchrom.fea as fea
import uchrom.pl as upl

plt.rcParams["figure.dpi"] = 90

OUT = Path("_out"); OUT.mkdir(exist_ok=True)   # outputs: tutorials/_out/ (ignored by git)

CORE = ds.fetch("takei")                       # FOF-CT core table (spots; 4DN, 22 MB; downloaded once)
T = ds.fetch("takei_tables")                   # its cell table and nascent-RNA spot table (4DN)
CELLS, RNA = T / "4DNFIFINA2U9.csv", T / "4DNFIJ52NVDV.csv"

1. Load the data and write a store

from_fofct reads the core table (one row per spot) together with the cell table (→ cd.cells, RNA counts as rna.<gene>) and the nascent-RNA spots (→ cd.points["rna"]). Spots whose trace id ends in _-1 were not assigned to an allele; we drop them. The browser opens .chromdata.zarr stores, so we write one.

raw = ChromData.from_fofct(CORE, cell_table=CELLS, rna_table=RNA)
cd = raw[~raw.spots["trace_id"].astype(str).str.endswith("_-1").to_numpy()]
unit = cd.uns["xyz_unit"]
print(cd)
STORE = OUT / "takei2021_mesc_multiomics.chromdata.zarr"
cd.write(STORE)
print("wrote", STORE)

ChromData: n_spots=314508, n_traces=7626, n_cells=201, n_bins=1200
  spots:   ['chrom', 'start', 'end', 'trace_id', 'spot_id', 'cell_id', 'extra_cell_roi_id', 'bin_id']
  cells:   ['extra_cell_roi_id', 'keep1', 'centroid_x', 'centroid_y', 'nucleus_area_um2', 'cytoplasm_area_um2', 'rna.Eef2', 'rna.Auts2', 'rna.Bdnf', 'rna.Clu', 'rna.Cx3cr1', 'rna.Efna5', 'rna.Npy', 'rna.S100b', 'rna.Slc17a7', 'rna.Stmn2', 'rna.Zfp42', 'rna.Myc', 'rna.Ccnd2', 'rna.Mcm2', 'rna.Mki67', 'rna.Sox2', 'rna.Nes', 'rna.Cdk1', 'rna.Mtf2', 'rna.Jade1', 'rna.Cenpa', 'rna.Aurka', 'rna.Plk1', 'rna.Mdm2', 'rna.Aebp2', 'rna.Tet1', 'rna.Nodal', 'rna.Tfcp2l1', 'rna.Tdh', 'rna.Sall4', 'rna.Nanog', 'rna.Esrrb', 'rna.Pou5f1', 'rna.Klf6', 'rna.Ctgf', 'rna.Peg10', 'rna.Myh9', 'rna.Tbx3', 'rna.Otx2', 'rna.Dnmt3a', 'rna.Dnmt3b', 'rna.Lin28a', 'rna.Lin28b', 'rna.Zscan4c', 'rna.Zfp352'] (201 cells)
  points:  {'rna': 3335}
  uns:     ['fofct_header', 'xyz_unit', 'genome_assembly', 'fofct_companions', 'cell_spatial']

wrote _out/takei2021_mesc_multiomics.chromdata.zarr

2. Plots with uchrom.pl

uchrom.pl draws matrices and histograms computed by uchrom.fea. Each function returns the matplotlib figure and takes ax= to draw into a panel of your own layout.

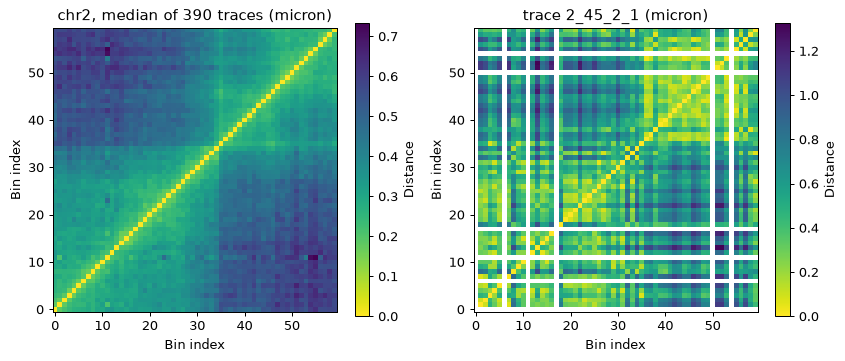

Distance matrix — the population median distance of every bin pair (fea.distance_map), next to a single trace. A single trace observes only some of the 60 bins (blank rows / columns); observed=False keeps every bin of the locus so that both matrices share the same axes.

chrom = "chr2"
pop = fea.distance_map(cd, chrom)

c2 = cd.get_chrom(chrom)
spots_per_trace = c2.spots.groupby("trace_id", observed=True).size()
trace = spots_per_trace.idxmax()
one = fea.distance_map(c2.get_trace(trace), chrom, observed=False)
print(f"population: {pop.n_traces} traces | trace {trace}: {int(np.isfinite(np.diag(one.matrix)).sum())} of 60 bins")

fig, axes = plt.subplots(1, 2, figsize=(9.5, 4))
upl.plot_distance_matrix(pop.matrix, title=f"{chrom}, median of {pop.n_traces} traces ({unit})", ax=axes[0])
upl.plot_distance_matrix(one.matrix, title=f"trace {trace} ({unit})", ax=axes[1])
plt.show()

population: 390 traces | trace 2_45_2_1: 54 of 60 bins

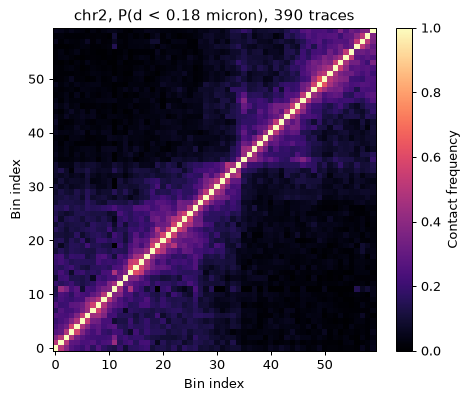

Contact map — the fraction of traces in which two bins are closer than a threshold (fea.contact_frequency); here the median distance between adjacent 25-kb bins.

threshold = round(float(np.nanmedian(np.diag(pop.matrix, 1))), 2)
df2 = c2.to_dataframe()
freq, bin_ids, n = fea.contact_frequency(df2, threshold, chrom=chrom)
print(f"threshold {threshold} {unit}: adjacent bins in contact in {np.nanmean(np.diag(freq, 1)):.0%} of traces")
fig = upl.plot_contact_map(freq, title=f"{chrom}, P(d < {threshold} {unit}), {n} traces")
fig.set_size_inches(5.2, 4.3)
plt.show()

threshold 0.18 micron: adjacent bins in contact in 49% of traces

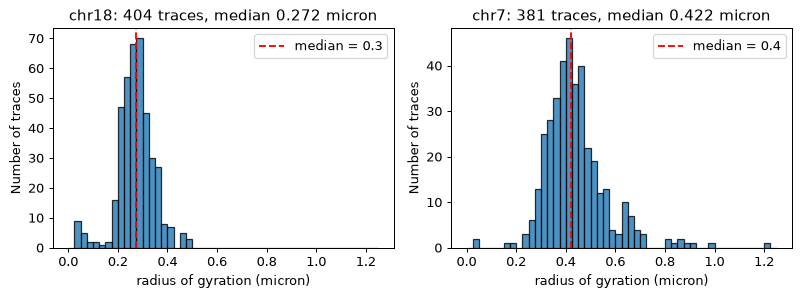

Radius of gyration — one value per trace (fea.radius_of_gyration). Two loci on shared axes: the chr7 locus is much less compact than the chr18 locus.

flat = cd.to_dataframe()
fig, axes = plt.subplots(1, 2, figsize=(9, 3.4), sharex=True)
edges = np.linspace(0, 1.25, 51)                # common bin edges (any `bins` that ax.hist accepts)
for ax, c in zip(axes, ["chr18", "chr7"]):
    rg = fea.radius_of_gyration(flat, chrom=c)
    upl.plot_rg_histogram(rg, bins=edges, title=f"{c}: {rg.notna().sum()} traces, median {rg.median():.3f} {unit}", ax=ax)
    ax.set_xlabel(f"radius of gyration ({unit})")
plt.show()

The legend rounds the median to one decimal; the titles give it exactly.

3-D structures — upl.plot_structure_3d(cd, chrom=..., trace_id=...) renders traces as tubes with PyVista, which is an optional dependency (pip install "u-chrom[plot3d]") and is not installed in this environment, so it is not run here:

plotter = upl.plot_structure_3d(cd, chrom="chr2", trace_id=trace, colour="bin", save_png="trace.png")

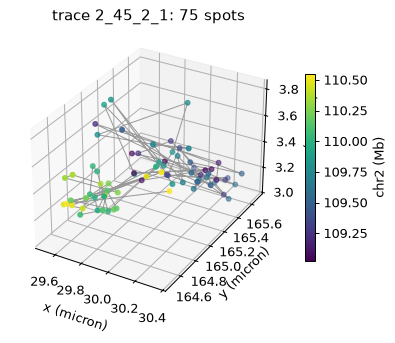

For a quick look without PyVista, matplotlib’s 3-D axes are enough — the trace drawn above, coloured by genomic position, with equal axis scales:

t = c2.get_trace(trace).to_dataframe().sort_values("start")
fig = plt.figure(figsize=(5, 4.5))
ax = fig.add_subplot(projection="3d")
ax.plot(t["x"], t["y"], t["z"], color="0.6", lw=0.8)
sc = ax.scatter(t["x"], t["y"], t["z"], c=t["start"] / 1e6, cmap="viridis", s=14)
ax.set_box_aspect([np.ptp(t[a]) for a in "xyz"])          # true proportions
fig.colorbar(sc, ax=ax, shrink=0.6, label=f"{chrom} (Mb)")
ax.set_xlabel(f"x ({unit})"); ax.set_ylabel(f"y ({unit})"); ax.set_zlabel(f"z ({unit})")
ax.set_title(f"trace {trace}: {len(t)} spots")
plt.show()

3. The web browser

The web browser shows a ChromData the way the data were taken: cells in their tissue, structures in 3-D, contact and distance maps, genome tracks and embeddings, linked through the cells you select. It is a local FastAPI server plus a single-page app; stores are opened backed (from disk or over HTTP), so only what is on screen is read.

From a terminal:

pip install uchrom-browser                      # or: pip install "u-chrom[web]"
python -m uchrom_browser data.chromdata.zarr    # = uchrom-browser data.chromdata.zarr; opens http://127.0.0.1:8765/
python -m uchrom_browser a.chromdata.zarr https://…/b.chromdata.zarr --port 9000 --noopen_browser

Without a path it opens empty, and the Open dialog lists the server’s folders and the public U-Chrom atlas (--atlas URL to list another one, --atlas= for none): single-cell and spatial Hi-C, Hi-C + RNA and imaging stores hosted at https://uchrom-atlas-r2.u-science.org and read over HTTP on demand. The same browser runs as a public, hosted service at https://uchrom-browser.u-science.org — open an atlas dataset there without installing anything.

Serving a store from Python

uchrom_browser.serve(paths) is what the command runs; it blocks until interrupted. In a notebook we build the same app with create_app around a DatasetStore and run it with uvicorn in a background thread on a free port, so that we can shut it down at the end.

import socket

import uvicorn
import uchrom_browser as ub
from uchrom_browser import DatasetStore, create_app


def free_port(host="127.0.0.1"):
    with socket.socket() as s:
        s.bind((host, 0))                       # the OS picks an unused port
        return s.getsockname()[1]


store = DatasetStore()
entry = store.load(STORE)                       # opened backed, as the command does
port = free_port()
app = create_app(store, atlas="https://uchrom-atlas-r2.u-science.org")
server = uvicorn.Server(uvicorn.Config(app, host="127.0.0.1", port=port, log_level="warning"))
thread = threading.Thread(target=server.run, daemon=True)
thread.start()
while not server.started:
    time.sleep(0.05)
URL = f"http://127.0.0.1:{port}"
print(f"serving {entry.name} as dataset {entry.id!r} on port {port} (open {URL}/ in a web browser to see it)")

serving takei2021_mesc_multiomics as dataset 'd1' on port 60907 (open http://127.0.0.1:60907/ in a web browser to see it)

The HTTP API

The page talks to the server through a small JSON / binary API (documented in packages/uchrom-browser/uchrom_browser/API.md); scripts can use it too. The dataset summary is what the page shows first: chromosomes, cell fields (RNA counts, morphology), point sets, tracks.

def get(path):
    with urllib.request.urlopen(URL + path, timeout=120) as r:
        return r.read()


health = json.loads(get("/api/health"))
print({k: health[k] for k in ("status", "version", "chromdata")})
summary = json.loads(get("/api/datasets"))[0]
print({k: summary[k] for k in ("id", "name", "n_spots", "n_bins", "n_traces", "n_cells", "xyz_unit", "trace_mode")})
print("cell fields:", len(summary["cell_fields"]), "e.g.", [f["name"] for f in summary["cell_fields"]][:5])
print("point sets:", [(p["name"], p["n_points"], len(p["labels"])) for p in summary["point_sets"]])
pd.DataFrame(summary["chroms"]).head()

{'status': 'ok', 'version': '0.1.0', 'chromdata': '0.1.0'}
{'id': 'd1', 'name': 'takei2021_mesc_multiomics', 'n_spots': 314508, 'n_bins': 1200, 'n_traces': 7626, 'n_cells': 201, 'xyz_unit': 'micron', 'trace_mode': True}
cell fields: 51 e.g. ['extra_cell_roi_id', 'keep1', 'centroid_x', 'centroid_y', 'nucleus_area_um2']
point sets: [('rna', 3335, 23)]

	name	start	end	n_spots	n_traces
0	chr1	135600000	137100000	16191	386
1	chr2	109000000	110575000	13729	390
2	chr3	7675000	9325000	18058	392
3	chr4	89300000	91025000	16067	396
4	chr5	131400000	132900000	14511	382

The statistics behind the Stats and Matrix views are the same as uchrom.fea’s. The per-trace radius of gyration matches exactly. The distance matrix differs slightly: when a trace has two spots in one bin the browser averages them, while distance_map keeps the last one; averaging the duplicates first gives the same matrix. The matrix arrives as a binary payload (a JSON header, then float32 values).

did = summary["id"]
rg_srv = json.loads(get(f"/api/datasets/{did}/stats/rg?chrom={chrom}"))
srv = pd.Series(rg_srv["rg"], index=rg_srv["trace_ids"])
ours = fea.radius_of_gyration(df2, chrom=chrom).rename(index=str)
print(f"Rg of {len(srv)} traces; max |server - fea| = {np.abs(srv - ours.reindex(srv.index)).max():.1e} {unit}")

buf = get(f"/api/datasets/{did}/distance?chrom={chrom}&stat=median")
(h,) = struct.unpack("<I", buf[:4])
header = json.loads(buf[4:4 + h])
mat = np.frombuffer(buf[4 + h:], "<f4").reshape(header["n_rows"], header["n_cols"])
print({k: header[k] for k in ("chrom", "n_rows", "value", "stat", "unit", "n_traces")})

dedup = df2.groupby(["trace_id", "chrom", "start", "end"], observed=True)[["x", "y", "z"]].mean().reset_index()
ref, _, _ = fea.mean_distance_matrix(dedup, chrom=chrom)
dup = df2.duplicated(["trace_id", "start"]).sum()
print(f"{dup} duplicate spots; max |server - distance_map| = {np.nanmax(np.abs(mat - pop.matrix)):.3f} {unit}, "
      f"after averaging duplicates = {np.nanmax(np.abs(mat - ref)):.1e} {unit}")

Rg of 390 traces; max |server - fea| = 1.1e-16 micron
{'chrom': 'chr2', 'n_rows': 60, 'value': 'distance', 'stat': 'median', 'unit': 'micron', 'n_traces': 390}
1177 duplicate spots; max |server - distance_map| = 0.098 micron, after averaging duplicates = 3.0e-08 micron

The server also opens stores by URL — what the Open dialog does for an atlas card. The catalog lists every dataset with its URL; opening the smallest one (Stevens et al. 2017, single-cell Hi-C

• 3-D structures of 8 mESCs) reads only its small tables and index over HTTP. This cell needs the network and is skipped when it is unavailable. Without a server, ds.list_atlas() gives the same catalog as a table and ds.atlas(id) opens one of its stores backed (see chromdata_stores).

def post(path, body):
    req = urllib.request.Request(URL + path, data=json.dumps(body).encode(), method="POST",
                                 headers={"Content-Type": "application/json"})
    with urllib.request.urlopen(req, timeout=120) as r:
        return json.loads(r.read())


try:
    atlas = json.loads(get("/api/atlas"))
    datasets = pd.DataFrame(atlas["catalog"]["datasets"])
    print(f"atlas {atlas['root']}: {len(datasets)} datasets")
    display(datasets[["id", "organism", "n_cells", "size_mb"]].sort_values("size_mb").head(5))
    small = datasets.sort_values("size_mb").iloc[0]
    t = time.time()
    remote = post("/api/datasets", {"path": small["url"]})
    print(f"opened {remote['name']} over HTTP in {time.time() - t:.1f} s: {remote['n_cells']} cells, "
          f"{remote['n_spots']:,} spots, contact maps {[m['key'] for m in remote['contact_maps']]}")
except (urllib.error.URLError, OSError, KeyError) as exc:
    print("atlas not reachable, skipped:", exc)

atlas https://uchrom-atlas-r2.u-science.org: 22 datasets

	id	organism	n_cells	size_mb
10	stevens2017_mesc	Mus musculus	8	25.8
8	chen2026_cerebellum_adult_20um	Mus musculus	24022	164.8
11	hires_brain	Mus musculus	399	260.9
18	schicar_mouse_cortex	Mus musculus	5313	262.8
20	unic_mouse	Mus musculus	20	270.9

opened stevens2017_mesc over HTTP in 1.0 s: 8 cells, 205,706 spots, contact maps ['bulk', 'per_cell']

Driving the browser with uchrom_browser.connect

ub.connect(url) returns a Workspace: a client for the actions of the open page — read the researcher’s selection, focus cells, set the locus, open and arrange views, colour cells, capture a view as PNG. The actions are defined once in uchrom_browser/ui_tools.json and become methods of the workspace. Without url, connect() finds the server that python -m uchrom_browser started last (it records its URL in ~/.cache/uchrom/browser.json; $UCHROM_BROWSER_URL overrides).

ws = ub.connect(URL, timeout=10)
print(ws)
for tool in ws.tools():
    print(f"  {tool['name']:<18} {textwrap.shorten(tool['description'], 84)}")
print("connected pages:", ws.pages())

Workspace('http://127.0.0.1:60907')
  describe_workspace What the browser shows now: the active dataset (path, cells, cell fields, [...]
  get_selection      The cells the researcher selected: the current lasso selection, else the [...]
  select_cells       Select cells (like a lasso) and focus them in every view that follows the [...]
  list_groups        Groups available as view scopes: automatic groups (one per value of each [...]
  focus              Focus one cell or one group in every view that follows the focus (the 3-D view [...]
  set_locus          Set the genomic window shared by the Genome, Matrix and Stats views.
  open_view          Open a new view (pane) and make it active. `cells`: 'focus' (default: follow [...]
  show_view          Make a view the active one (in the tabs layout, the one shown).
  close_view         Close a view by its pane id.
  arrange            Lay the views out as tabs, columns, rows or a grid.
  color_by           Colour all cells by a cell field (e.g. cell_type, rna.Nanog, if.H3K9me3).
  capture_view       Render one view (default: the active one) as PNG; returns {png_base64, width, [...]
connected pages: []

Actions are carried out by the page: the server forwards each one to the most recently active browser tab and returns its answer. This notebook has no page open, so an action fails at once with a BrowserError (HTTP 409); with a page open that does not answer, it fails after timeout seconds (504).

try:
    ws.describe()
except ub.BrowserError as exc:
    print("BrowserError:", exc)

BrowserError: 409: no browser page is connected; open the browser (python -m uchrom_browser …)

With the browser open in a tab (python -m uchrom_browser data.chromdata.zarr), a session looks like this — not run here, since every call needs the page:

ws = ub.connect()                                   # the running server
ws.describe()                                       # dataset, panes, locus, selection
cells = ws.selected_cells()                         # the researcher's lasso / focused group / cell
cd = ws.dataset()                                   # the ChromData the page has open (read in this process)
g = ws.select_cells(cells=cells)["group"]           # register the selection as a group
ws.set_locus(chrom="chr2", start=109_000_000, end=110_600_000)
ws.open_view("genome", cells=g, rows=[{"kind": "distance", "cells": g},
                                      {"kind": "distance", "cells": "all"}])
ws.open_view("stats", stats="rg", compare_groups=[g, "all"])
ws.color_by(field="rna.Nanog")
ws.capture(path="view.png")                         # PNG of the active view

ws.dataset() asks the page for the open file’s path. Without a page, read the store the server lists directly — the analysis then runs in this process:

path = json.loads(get("/api/datasets"))[0]["path"]
same = ChromData.read(path, backed=True)
print(os.path.relpath(path), "->", same.n_spots, "spots,", same.n_cells, "cells (backed)")

_out/takei2021_mesc_multiomics.chromdata.zarr -> 314508 spots, 201 cells (backed)

Shut the server down

server.should_exit = True
thread.join(timeout=10)
try:
    get("/api/health")
    print("still running")
except (urllib.error.URLError, OSError):
    print("server stopped:", not thread.is_alive())

server stopped: True

Next steps

• features — the uchrom.fea features behind these plots, and per-locus tracks / peaks / annotations that the browser shows as genome tracks.

• loop_calling, tad_calling — structure calls (stored in cd.results / cd.intervals) that the browser draws as arcs and boxes over the matrices.

• chromdata_basics, import_fofct — building and writing the stores the browser opens.
